Tray Delivery Trucks for Healthcare


Lightest, most durable trucks available anywhere.
Lighter weight is safer and easier to pull or push, even on carpets.

Lowest total cost of ownership because they last so long.

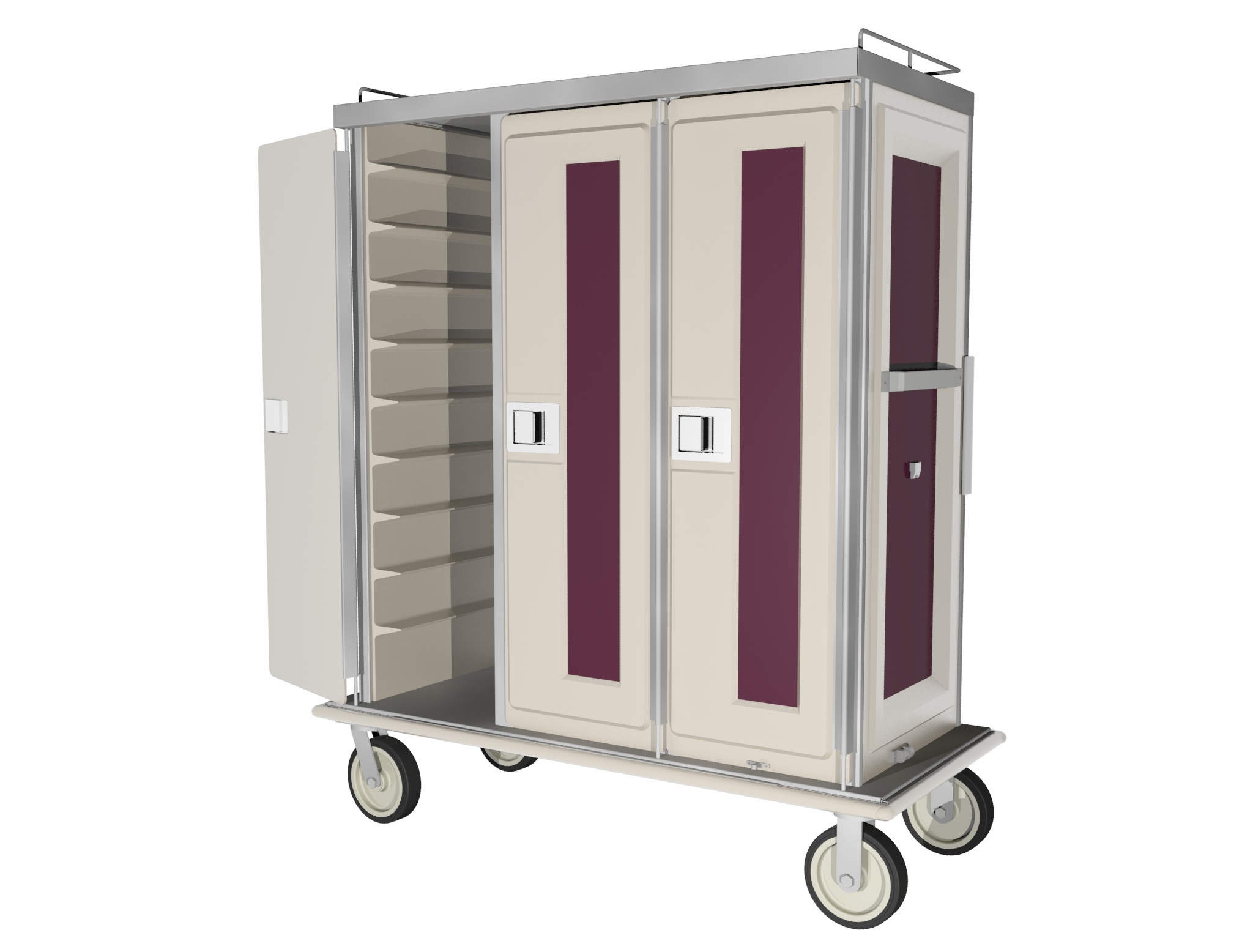

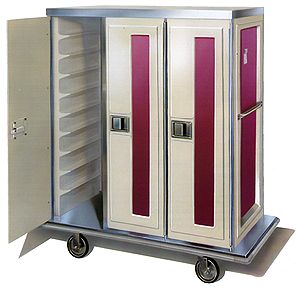

(shown above, model TD-630-D, in cream/cranberry)

All Caddy Trucks Have The Following Features

  • 300 series stainless steel in critical areas such as top, bottom and back.

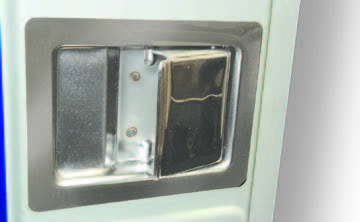

  • Latches are 300 series stainless steel, airline type, with positive cam lock, to keep doors securely closed.
  • Super impact, double walled body will not dent like metal does. Resists stains and damage from cleaning agents.
  • All openings are sealed against water and vermin.
  • Doors swing 270 degrees against side of truck for easy loading, unloading and cleaning.
  • Heavy duty perimeter bumpers with Tite-Grip channels prevent buckling or tearing loose.
  • Removable doors have full length, 300 series stainless steel rod hinges, for ease of use and durability.

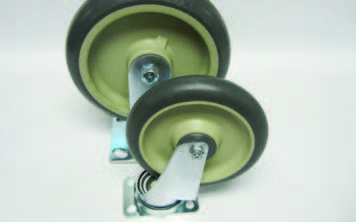

  • Heavy duty plated steel casters.
  • No extra charge for grease fittings, steel ball bearings and polyurethane tires.
  • No disassembly required for cleaning.
  • No sharp corners inside for easy, safe access.
  • Roller type identa-card holders. No springs to weaken.
Please see below for Standard Models and Accessories
Available in 5 patient-pleasing color combinations: Cream/Blue, Cream/Teal, Cream/Cranberry, Cream/Gray, and Basic Cream
Note: On-screen colors may vary from actual colors. Please feel free to contact us for more information.

Blue Teal Cranberry Gray Cream

Have a tough application?

We will meet your needs.

Any size, any width, any length, any height, and in any color.

Ask us about your specific requirements such as Roll-in Refrigerators and Prison applications.



Models

Series TD-614-D
Length Width Height Trays Doors
40-1/2" 26-3/4" 47" 14 2
Net wt. 160 lbs.
TD-614-D also available with 1 door, 7 tray capacity as model TD-607-D.



Series TD-621-D
Length Width Height Trays Doors
60-1/4" 26-3/4" 47" 21 3
Net wt. 220 lbs.



Series TD-616-D
Length Width Height Trays Doors
41-1/2" 26-3/4" 53-3/4" 16 2
Net wt. 175 lbs.

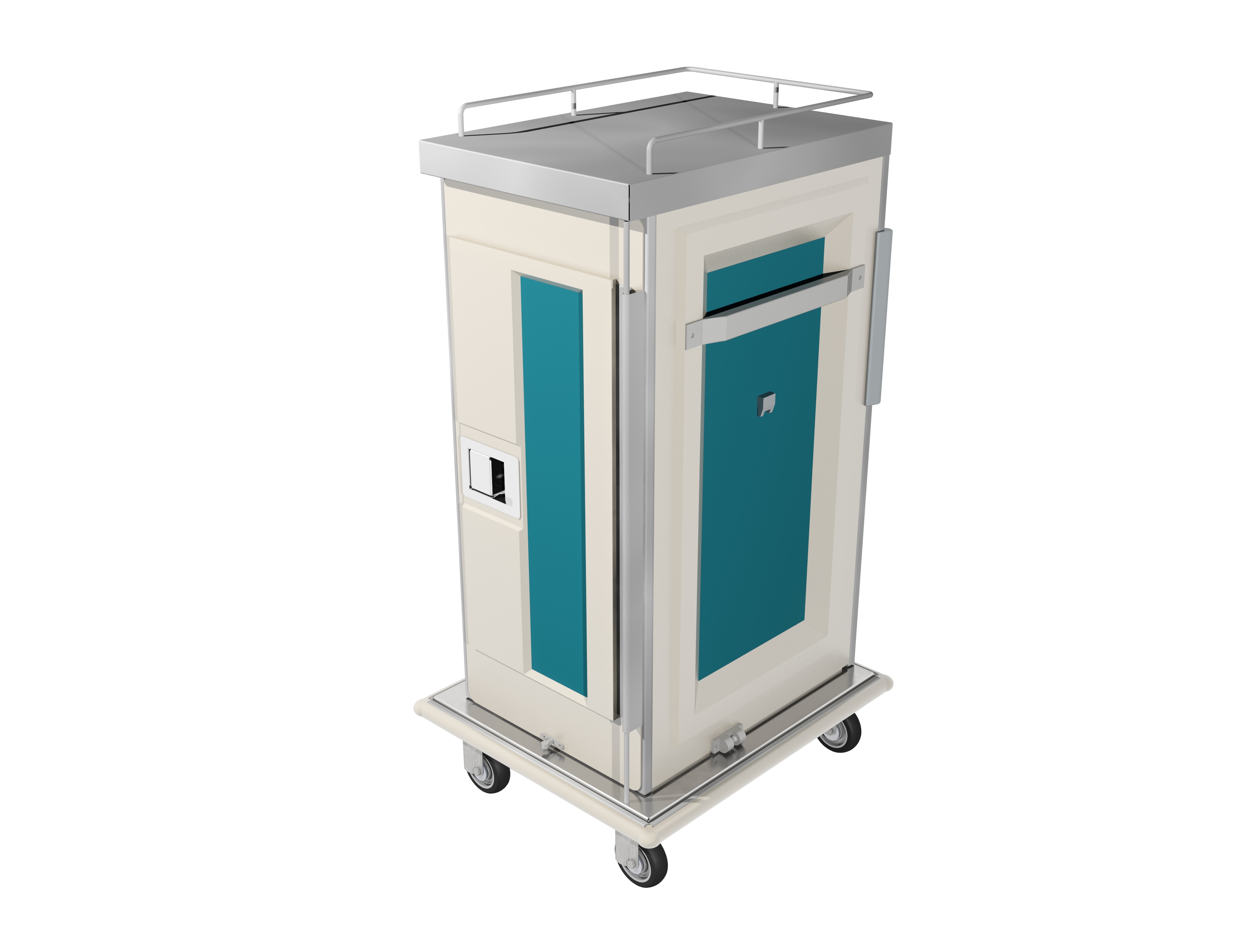

TD-616-D also available with 1 door, 8 tray capacity as model TD-608-D.



Series TD-624-D
Length Width Height Trays Doors
60-1/4" 25-3/4" 53-3/4" 24 3
Net wt. 233 lbs.

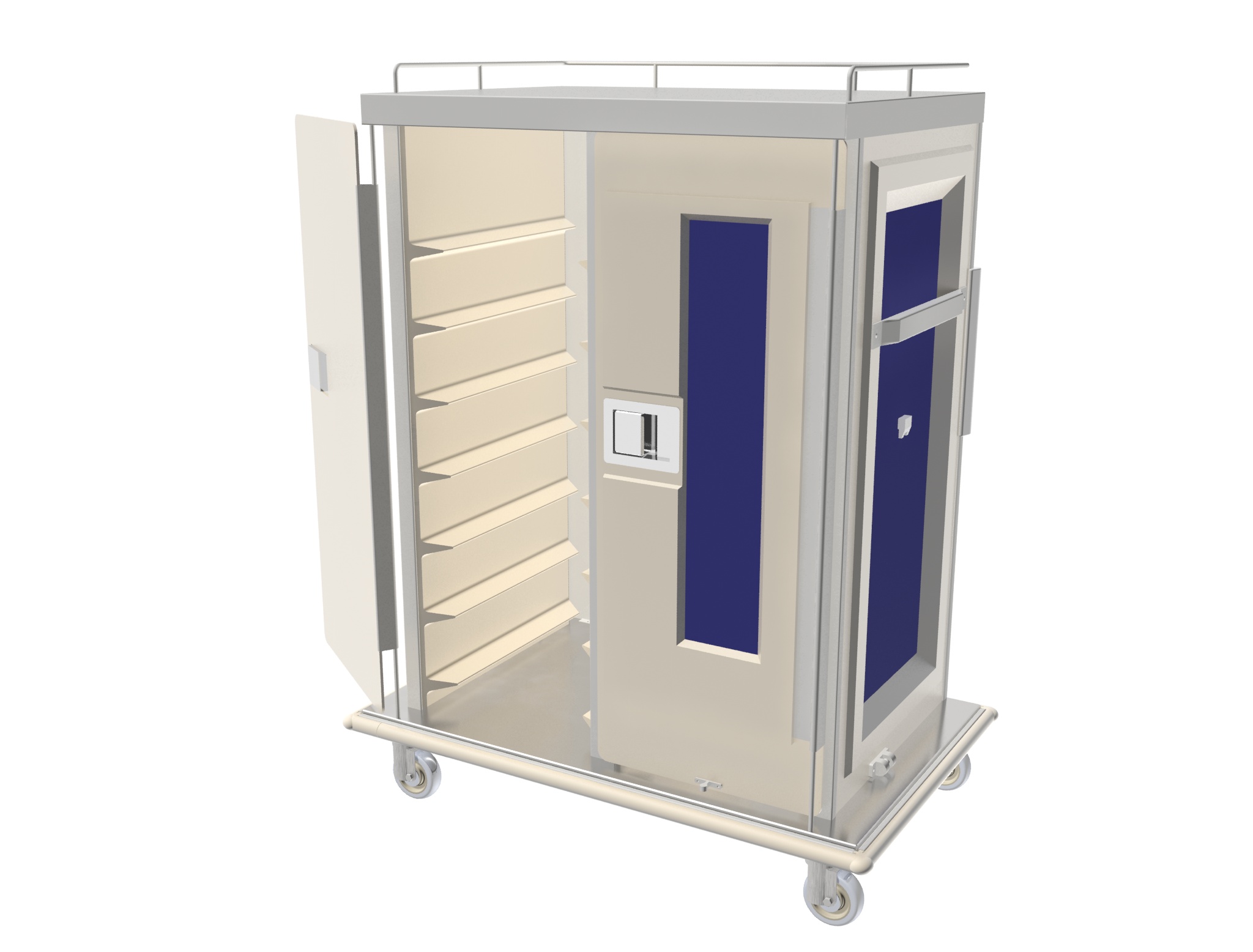

Series TD-620-D
Length Width Height Trays Doors
41-1/2" 26-3/4" 64" 20 2
Net wt. 175 lbs.
TD-620-D also available with 1 door, 10 tray capacity as model TD-610-D.



Series TD-630-D
Length Width Height Trays Doors
60-1/4" 26-1/4" 64" 30 3
Net wt. 265 lbs.



Space-Sava Trucks for14" x 18" trays only
Series Length Width Height Trays Doors Weight
TDC-20-D 30-1/2" 34-1/4" 64-1/4" 16 1 131 lbs.
TDC-40-D 45-1/4" 34-1/4" 64-1/4" 40 2 244 lbs.
TDC-20-DD* 30-1/2" 34-1/4" 64-1/4" 20 2 131 lbs.
TDC-40-DD* 45-1/4" 34-1/4" 64-1/4" 40 4 244 lbs.

* DD denotes doors front and back
Doors are on both sides for air circulation when refrigerated storage is needed.

Available in Cream only

TDC-20-D/DD

TDC-40-D/DD



14 & 21 Tray Series for Vertical Transport Systems


Expedite handling from floor to floor

  • Automatic transport systems promote fast tray delivery and reduce elevator use (making them available for important functions).
  • These trucks fit easily into mini-elevator openings. Available in 14 tray and 21 tray capacities.





Accessories

  • ACC-17: Pull Handles for both ends of truck

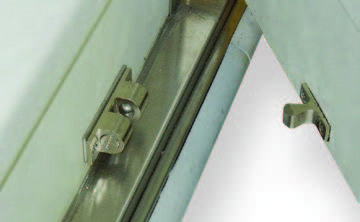

  • ACC-19: Door Stay Open Device

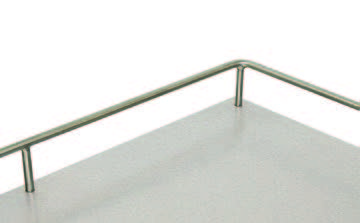

  • ACC-21: Top Perimeter Rail
  • ACC-45: Vertical Rear Corner Bumpers
  • ACC-61: 6" Caster Brakes, sets of 2
  • ACC-62: 8" Caster Brakes, sets of 2



  • ACC-65: 8" Polyurethane Carpet Casters, sets of 4
  • ACC-76: 8" Polyurethane Carpet Casters, sets of 4
  • ACC-77: 6" Non-Corrosive Stainless Steel / Polyurethane Casters, sets of 4
  • ACC-78: 8" Non-Corrosive Stainless Steel / Polyurethane Casters, sets of 4

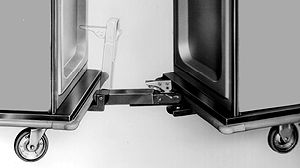

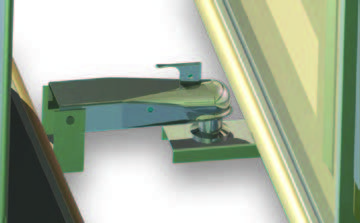

Coupling Device
